Principium opus

Screw genus pituitae torcularis inaquationis (Screw Press) e filtro structum est quod ex duobus generibus Annuli constat: Annulum fixum et Ringonem movens; et cochleae quae colum elementum impellit et pituitam transfert et premit.

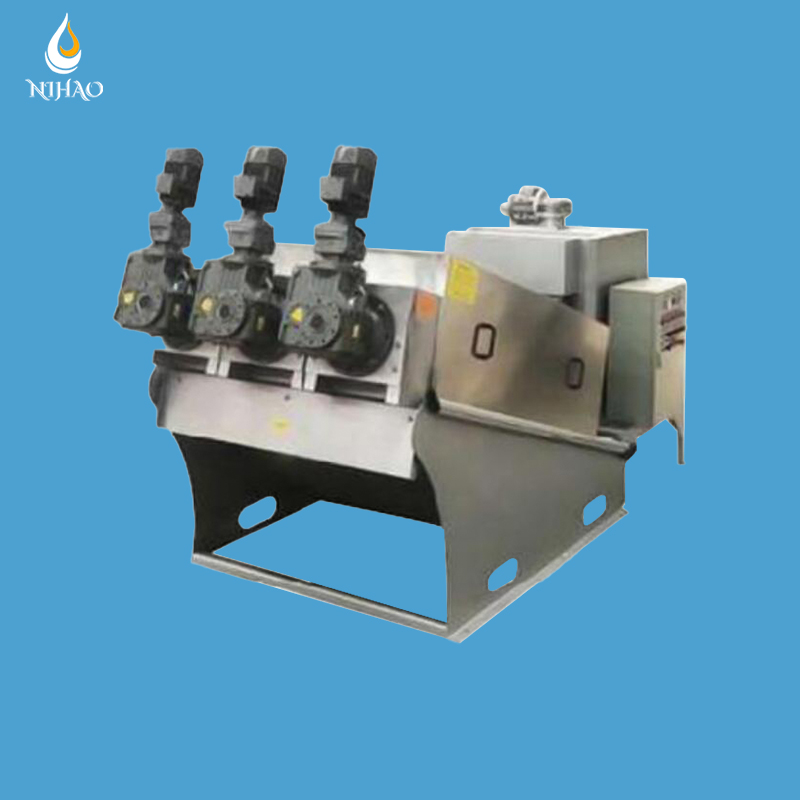

  • NH-303

    NH-303

    Item Number: NH-303
    DS Standard: 90-150 KG/H
    Theoretical Reference For Sludge Treatment Volume: 15 m3/h (MLSS-1000mg/L)
    Dims: 3700 x 1450 x 1800 mm
    Scew Specifications: 300mm x 3 pcs
    Net Weight: 1358 KG
    Pondus operans: 2750 KG
    Visum Morbi

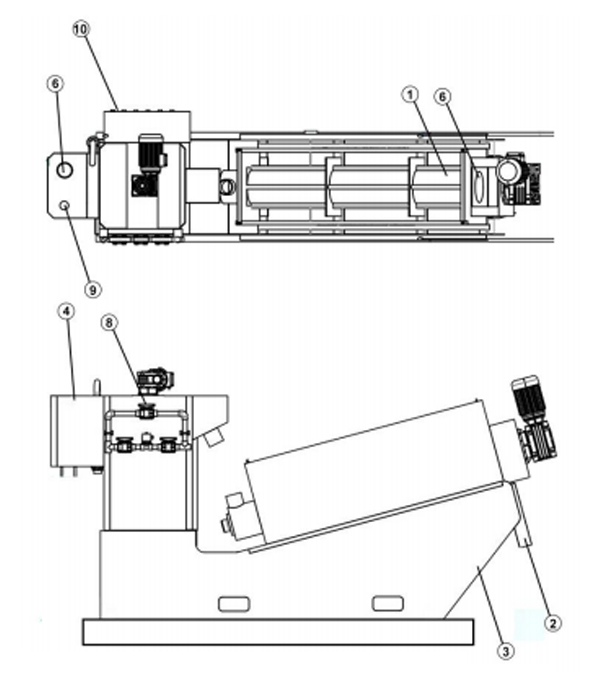

    View Drawings

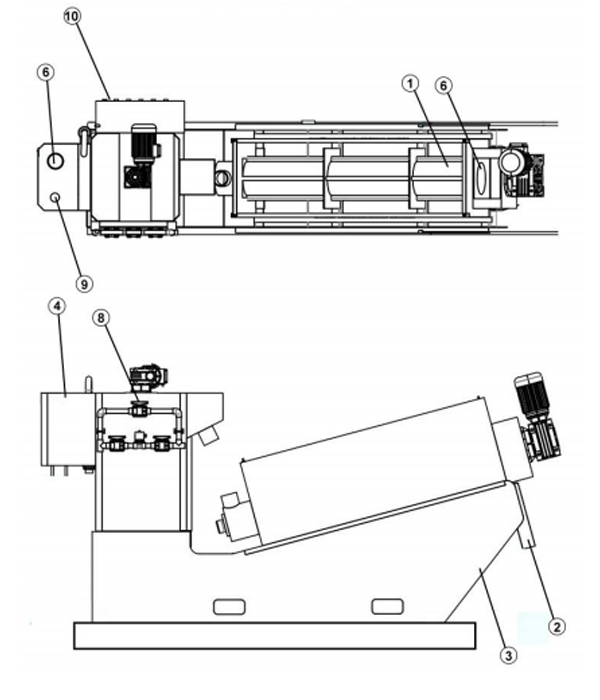

    NH-303 PARS NAME
    NO. Nomen Materia Dicta
    ① Dewatering corpus SUS304
    ② Exitus Mud foramen altitudinis a terra SUS304 620mm
    ③ Dewatering corpus deorsum laminam SUS304 Apertura: 4-020
    ④ Dosing cisternina SUS304 L300*W350*H760(mm)
    ⑤ Flocculationis miscentes tank SUS304 L840*W840*H960(mm)
    ⑥ Miscere cisternina mixer SUS304 Screw slurry genus
    ⑦ Tubus liquidus campester temperatio SUS304
    ⑧ Aquarum valvae solenoid SUS304 DN20
    ⑨ Liquid planum switch SUS304
    ⑩ Electric imperium scrinium SUS304 Libitum

    INTERFACE CONJUGATIO
    Nec. Nomen INGENIUM Connection Part
    NH-1 Pituitae importans portum DN40 PVC interface
    NH-2 Filtrate missionis portum DN80 Flange (SUS )
    NH-3 Aquarum portum DN20 PVC interface
    NH-4 Liquidum eget portans DN20 PVC interface
    NH-5 Refluxus portum DN80 PVC interface
    NH-6 Mixtio tristique missio portum DN50 Pila valvae (PVC)

    ELECTIO PARAMETERS
    Processus facultatem 90~150(DS-kg/h)
    Electricity consummatio 3kw/h*
    Aqua rutilant consummatio 120L/h
    Polymerus flocculant praeter rate Nam DST~ 0.3%
    Tutela procuratio frequentiae 5min/day
    Aquarum copia pressura 0.1~0.2MPa
    Lutum massae missionem procul a terra 620mm
    Mechanica magnitudine L3605*W1470*H1780(mm)
    Net pondus 1358kg
    Operans pondus 2750kg

    LEGE PLUS

  • NH-302

    NH-302

    Item Number: NH-302
    DS Standard: 60-100 KG/H
    Theoretical Reference For Sludge Treatment Volume: 10 m3/h (MLSS-1000mg/L)
    Dims: 3400 x 1200 x 1800 mm
    Scew Specifications: 300mm x 2 pcs
    Net Weight: 968 KG
    Pondus operans: 2030 KG
    Visum Morbi
    View Drawings

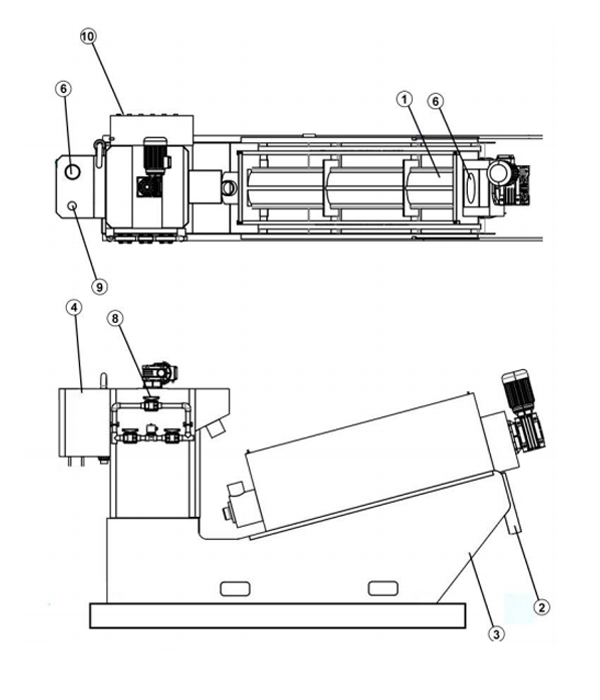

    NH-302 PARS NAME
    NO. Nomen Materia Dicta
    ① Dewatering corpus SUS304
    ② Exitus Mud foramen altitudinis a terra SUS304 630mm
    ③ Dewatering corpus deorsum laminam SUS304 Apertura: 4-.20
    ④ Dosing cisternina SUS304 _300*W350*H760(mm)
    ⑤ Flocculationis miscentes tank SUS304 L720*W720*H960(mm)
    ⑥ Miscere cisternina mixer SUS304 Screw slurry genus
    ⑦ Tubus liquidus campester temperatio SUS304
    ⑧ Aquarum valvae solenoid SUS304 DN20
    ⑨ Liquid planum switch SUS304
    ⑩ Electric imperium scrinium SUS304 Libitum

    INTERFACE CONJUGATIO
    Nec. Nomen INGENIUM Connection Part
    NH-1 Pituitae importans portum DN40 PVC interface
    NH-2 Filtrate missionis portum DN80 Flange(SUS )
    NH-3 Aquarum portum DN20 PVC interface
    NH-4 Liquidum eget portans DN20 PVC interface
    NH-5 Refluxus portum DN80 PVC interface
    NH-6 Mixtio tristique missio portum DN50 Pila valvae (PVC)

    ELECTIO PARAMETERS
    Processus facultatem 60~100(DS-kg/h)
    Electricity consummatio 2.25kw/h
    Aqua rutilant consummatio 80L/h
    Polymerus flocculant praeter rate Pro DS/T~0.3%
    Tutela procuratio frequentiae 5min/day
    Aquarum copia pressura 0.1~0.2MPa
    Lutum massae missionem procul a terra 630mm
    Mechanica magnitudine L3605*W1060*H1780(mm)
    Net pondus 968kg
    Operans pondus 2030kg

    LEGE PLUS

  • NH-301

    NH-301

    Item Number: NH-301
    DS Standard: 30-50KG/H
    Theoretical Reference For Sludge Treatment Volume: 5m3/h (MLSS-1000mg/L)
    Dims: 3100 x 900 x 1800 mm
    Scew Specifications: 300 mm x 1 pcs
    Net Weight: 568 KG
    Pondus operans: 1200 KG
    Visum Morbi
    View Drawings

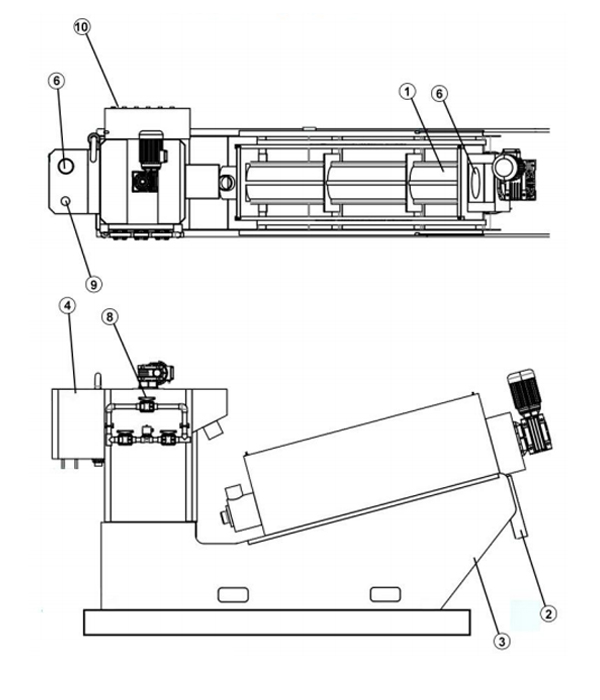

    NH-301 PARS NAME
    NO. Nomen Materia Dicta
    ① Dewatering corpus SUS304
    ② Exitus Mud foramen altitudinis a terra SUS304 640mm
    ③ Dewatering corpus deorsum laminam SUS304 Apertura: 4-20
    ④ Dosing cisternina SUS304 L300*W350*H760(mm)
    ⑤ Flocculationis miscentes tank SUS304 L450*W450*H960(mm)
    ⑥ Miscere cisternina mixer SUS304 Screw slurry genus
    ⑦ Tubus liquidus campester temperatio SUS304
    ⑧ Aquarum valvae solenoid SUS304 DN20
    ⑨ Liquid planum switch SUS304
    ⑩ Electric imperium scrinium SUS304 Libitum

    INTERFACE CONJUGATIO
    NO. Nomen INGENIUM Connection Part
    NH-1 Pituitae importans portum DN40 PVC interface
    NH-2 Filtrate missionis portum DN80 Flange (SUS )
    NH-3 Aquarum portum DN20 PVC interface
    NH-4 Liquidum eget portans DN20 PVC interface
    NH-5 Refluxus portum DN80 PVC interface
    NH-6 Mixtio tristique missio portum DN50 Pila valvae (PVC)

    ELECTIO PARAMETERS
    Processus facultatem 30~50(DS-kg/h)
    Electricity consummatio 1.5kw/h*
    Aqua rutilant consummatio 40L/h
    Polymerus flocculant praeter rate Nam DST~ 0.3%
    Tutela procuratio frequentiae 5min/day
    Aquarum copia pressura 0.1~0.2MPa
    Lutum massae missionem procul a terra 700mm
    Mechanica magnitudine L3250*W950*H1780(mm)
    Net pondus 568kg
    Operans pondus 1200kg

    LEGE PLUS

  • NH-251

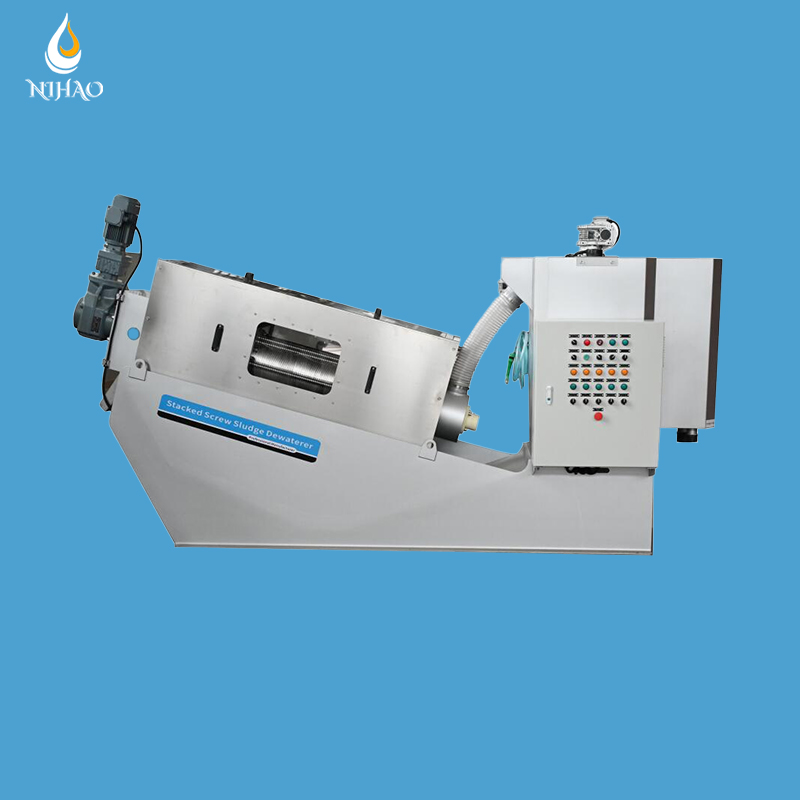

    NH-251

    Item Number: NH-251
    DS Standard: 20-35KG/H
    Theoretical Reference For Sludge Treatment Volume: 1.5 m3/h(MLSS-1000mg/L)
    Dims: 2600 x 850 x 1500 mm
    Scew Specifications: 250mm x 1 pcs
    Net Weight: 450 KG
    Pondus operans: 700 KG
    Visum Morbi
    View Drawings
    NH-131 PARS NAME
    NO. Nomen Materia Dicta
    ① Dewatering corpus SUS304
    ② Exitus Mud foramen altitudinis a terra SUS304 480mm
    ③ Dewatering corpus deorsum laminam SUS304 Apertura: 4-020
    ④ Dosing cisternina SUS304 L200*W250*H500(mm
    ⑤ Flocculationis miscentes tank SUS304 L380*W380*H700(mm)
    ⑥ Miscere cisternina mixer SUS304 Screw slurry genus
    ⑦ Tubus liquidus campester temperatio SUS304
    ⑧ Aquarum valvae solenoid SUS304 DN20
    ⑨ Liquid planum switch SUS304
    ⑩ Electric imperium scrinium SUS304 Libitum

    INTERFACE CONJUGATIO
    NO. Nomen INGENIUM Connection Part
    NH-1 Pituitae importans portum DN40 PVC interface
    NH-2 Filtrate missionis portum DN80 Filum interius (304)
    NH-3 Aquarum portum DN20 PVC interface
    NH-4 Liquidum eget portans DN20 PVC interface
    NH-5 Refluxus portum DN80 PVC interface
    NH-6 Mixtio tristique missio portum DN50 Pila valvae (PVC)

    ELECTIO PARAMETERS
    Processus facultatem 20~35(D5-kg/h)
    Electricity consummatio 0.3kw/h
    Aqua rutilant consummatio 32L/h
    Polymerus flocculant praeter rate ForDS/T~0.3%
    Tutela procuratio frequentiae 5min/day
    Aquarum copia pressura 0.1~0.2MPa
    Lutum massae missionem procul a terra 480mm
    Mechanica magnitudine L2600*W800*H1480(mm)
    Net pondus 450kg
    Operans pondus 700kg

    LEGE PLUS

  • NH-202

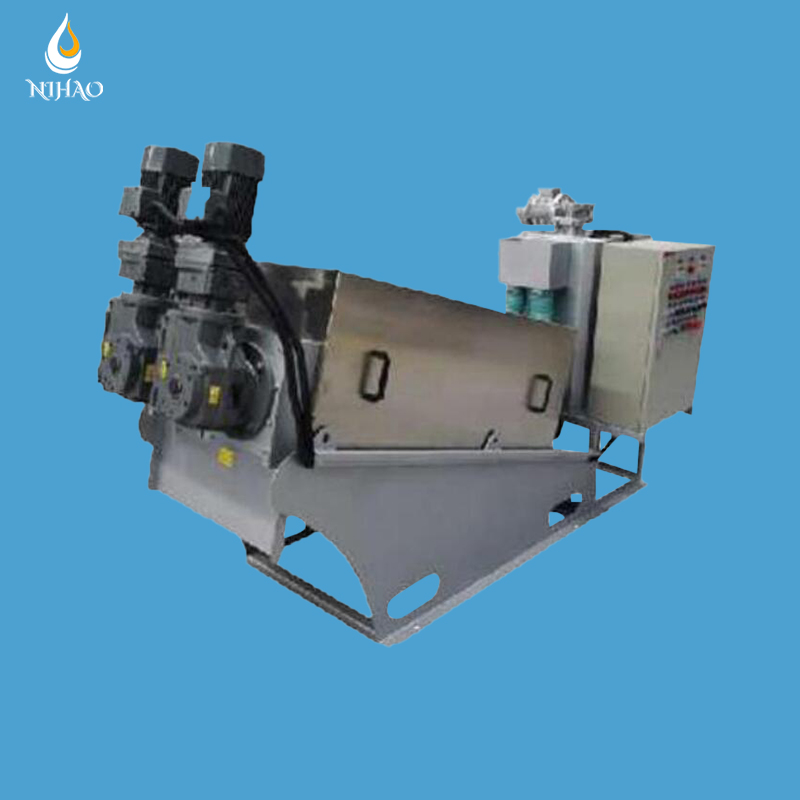

    NH-202

    Item Number: NH-202
    DS Standard: 18-30KG/H
    Theoretical Reference For Sludge Treatment Volume: 3m3/h (MLSS-1000mg/L)
    Dims: 2600 x 950 x 1450 mm
    Scew Specifications: 200mm x 2 pcs
    Net Weight: 515 KG
    Operans pondus: 680 KG
    Visum Morbi
    View Drawings

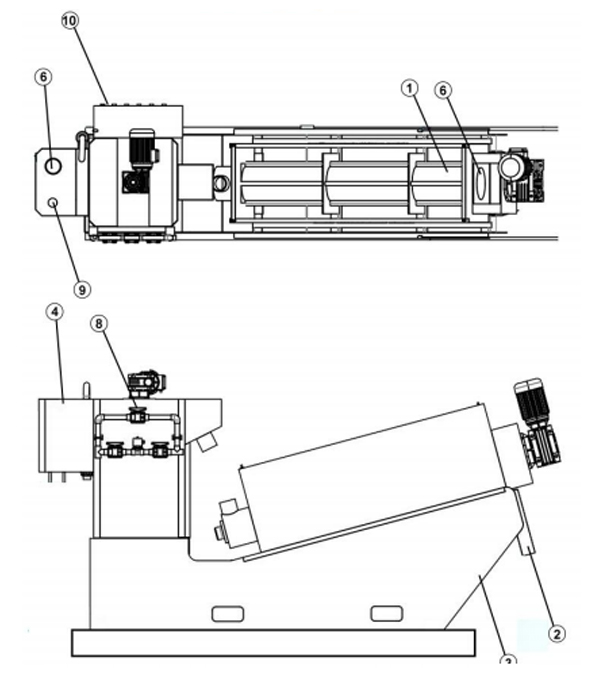

    NH-202 PARS NAME
    NO. Nomen Materia Dicta
    ① Dewatering corpus SUS304
    ② Exitus Mud foramen altitudinis a terra SUS304 400mm
    ③ Dewatering corpus deorsum laminam SUS304 Apertura: 4-20
    ④ Dosing cisternina SUS304 L300*W300*H550(mm)
    ⑤ Flocculationis miscentes tank SUS304 L420*W420*H700(mm)
    ⑥ Miscere cisternina mixer SUS304 Screw slurry genus
    ⑦ Tubus liquidus campester temperatio SUS304
    ⑧ Aquarum valvae solenoid SUS304 DN20
    ⑨ Liquid planum switch SUS304
    ⑩ Electric imperium scrinium SUS304 Libitum

    INTERFACE CONJUGATIO
    Nec. Nomen INGENIUM Connection Part
    NH-1 Pituitae importans portum DN40 PVC interface
    NH-2 Filtrate missionis portum DN80 Filum interius (304)
    NH-3 Aquarum portum DN20 PVC interface
    NH-4 Liquidum eget portans DN20 PVC interface
    NH-5 Refluxus portum DN80 PVC interface
    NH-6 Mixtio tristique missio portum DN50 Pila valvae (PVC)

    ELECTIO PARAMETERS
    Processus facultatem 18~30(DS-kg/h)
    Electricity consummatio 1.1kw/h
    Aqua rutilant consummatio 32L/h
    Polymerus flocculant praeter rate Nam DST~ 0.3%
    Tutela procuratio frequentiae 5min/day
    Aquarum copia pressura 0.1~0.2MPa
    Lutum massae missionem procul a terra 400mm
    Mechanica magnitudine L2000*W950*H1450(mm)
    Net pondus 515kg
    Operans pondus 680kg

    LEGE PLUS

  • NH-201

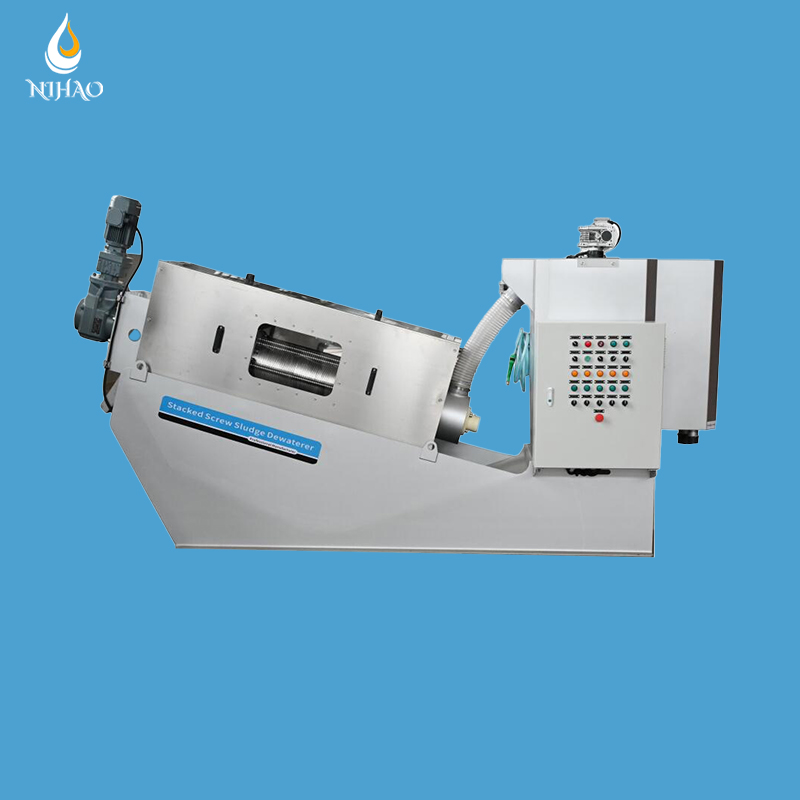

    NH-201

    Item Number: NH-201
    DS Standard: 9-15KG/H
    Theoretical Reference For Sludge Treatment Volume: 1.5m3/h (MLSS-1000mg/L)
    Dims: 2500 x 800 x 1450 mm
    Scew Specifications: 200mm x 1 pcs
    Net Weight: 315 KG
    Pondus operans: 420 KG

    Visum Morbi
    View Drawings
    NH-131 PARS NAME
    NO. Nomen Materia Dicta
    ① Dewatering corpus SUS304
    ② Exitus Mud foramen altitudinis a terra SUS304 500mm
    ③ Dewatering corpus deorsum laminam SUS304 Aperture:4-420
    ④ Dosing cisternina SUS304 L200*W250*H450(mm)
    ⑤ Flocculationis miscentes tank SUS304 L330W330*H550(mm)
    ⑥ Miscere cisternina mixer SUS304 Screw slurry genus
    ⑦ Tubus liquidus campester temperatio SUS304
    ⑧ Aquarum valvae solenoid SUS304 DN20
    ⑨ Liquid planum switch SUS304
    ⑩ Electric imperium scrinium SUS304 Libitum

    INTERFACE CONJUGATIO
    NO. Nomen INGENIUM Connection Part
    NH-1 Pituitae importans portum DN40 PVC interface
    NH-2 Filtrate missionis portum DN80 Filum interius (304)
    NH-3 Aquarum portum DN20 PVC interface
    NH-4 Liquidum eget portans DN20 PVC interface
    NH-5 Refluxus portum DN80 PVC interface
    NH-6 Mixtio tristique missio portum DN50 Pila valvae (PVC)

    ELECTIO PARAMETERS
    Processus facultatem 9~15(D5-kg/h)
    Electricity consummatio 0.3kw/h
    Aqua rutilant consummatio 32L/h
    Polymerus flocculant praeter rate Pro DS/T~0.3%
    Tutela procuratio frequentiae 5min/day
    Aquarum copia pressura 0.1~0.2MPa
    Lutum massae missionem procul a terra 500mm
    Mechanica magnitudine L2600*W800*H1480(mm)
    Net pondus 315kg
    Operans pondus 420kg

    LEGE PLUS

  • NH-132

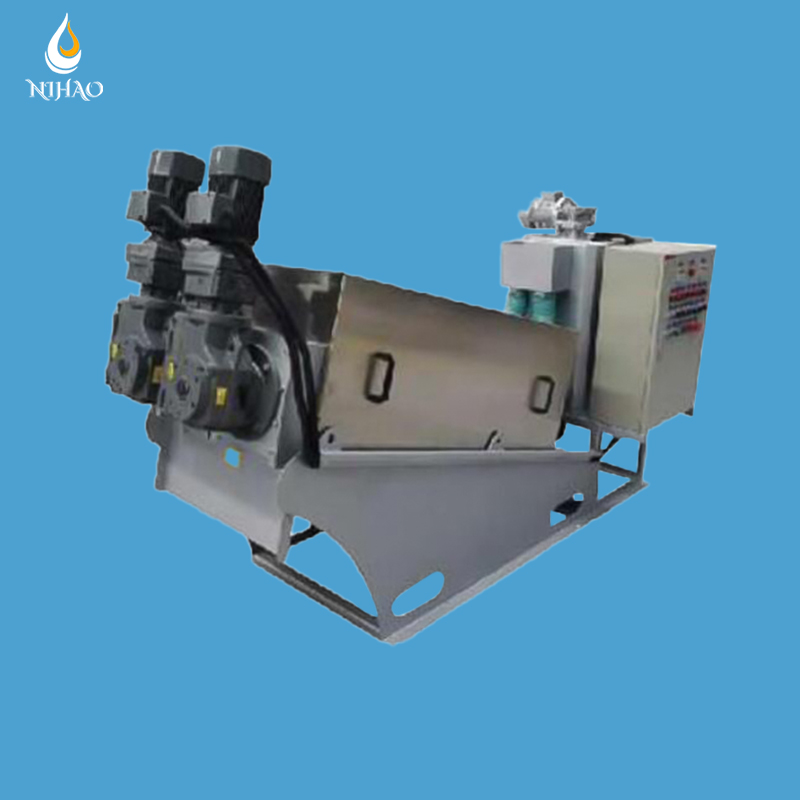

    NH-132

    Item Number: NH-132
    DS Standard: 12-20KG/H
    Theoretical Reference For Sludge Treatment Volume: 2m3/h (MLSS-1000mg/L)
    Dims: 2100 x 850 x 1150 mm
    Scew Specifications: 132mm x 2 pcs
    Net pondus: 360KG
    Operans pondus: 400KG
    Visum Morbi
    View Drawings

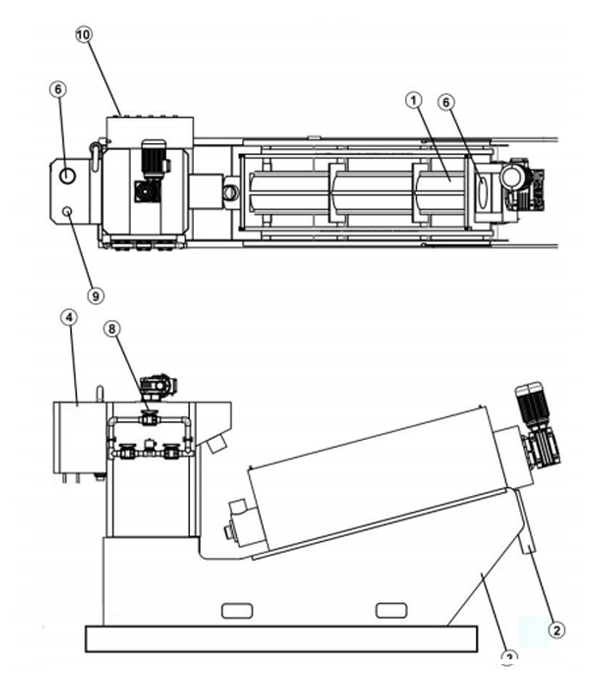

    NH-132 PARS NAME
    NO. Nomen Materia Dicta
    ① Dewatering corpus SUS304
    ② Exitus Mud foramen altitudinis a terra SUS304 Apertura: 4-20
    ③ Dewatering corpus deorsum laminam SUS304 L200*W250*H450(mm)
    ④ Dosing cisternina SUS304 L330*W330*H550(mm
    ⑤ Flocculationis miscentes tank SUS304 Screw slurry genus
    ⑥ Miscere cisternina mixer SUS304
    ⑦ Tubus liquidus campester temperatio SUS304
    ⑧ Aquarum valvae solenoid SUS304 DN20
    ⑨ Liquid planum switch SUS304
    ⑩ Electric imperium scrinium SUS304 Libitum

    INTERFACE CONJUGATIO
    NO. Nomen INGENIUM Connection Part
    NH-1 Pituitae importans portum DN40 PVC interface
    NH-2 Filtrate missionis portum DN80 Filum interius (304)
    NH-3 Aquarum portum DN20 PVC interface
    NH-4 Liquidum eget portans DN20 PVC interface
    NH-5 Refluxus portum DN80 PVC interface
    NH-6 Mixtio tristique missio portum DN50 Pila valvae (PVC)

    ELECTIO PARAMETERS
    Processus facultatem 12~20(DS-kg/h)
    Electricity consummatio 0.3kw/h
    Aqua rutilant consummatio 24L/h
    Polymerus flocculant praeter rate Pro DS/T~0.3%
    Tutela procuratio frequentiae 5min/day
    Aquarum copia pressura 0.1~0.2MPa
    Lutum massae missionem procul a terra 300mm
    Mechanica magnitudine L2000*W700*H1060(mm)
    Net pondus 360kg
    Operans pondus 400kg

    LEGE PLUS

  • NH-131

    NH-131

    Item Numerus: NH-131
    DS Latin: 6-10KG/H
    Theoretical Reference For Sludge Treatment Volume: 1m3/h (MLSS-1000mg/L)
    Dims: 1960 x 800 x 1150 mm
    Specificationes speculatoriae: 130mm x 1 pcs
    Rete Pondus: 182KG
    Pondus operating: 280KG
    Visum Morbi
    View Drawings
    NH-131 PARS NAME
    NO. Nomen Materia Dicta
    ① Dewatering corpus SUS304
    ② Exitus Mud foramen altitudinis a terra SUS304 280mm
    ③ Dewatering corpus deorsum laminam SUS304 Aperture4-420
    ④ Dosing cisternina SUS304 L200"W250*H450(mm)
    ⑤ Flocculationis miscentes tank SUS304 L330W330*H550(mm)
    ⑥ Miscere cisternina mixer SUS304 Screw slurry genus
    ⑦ Tubus liquidus campester temperatio SUS304
    ⑧ Aquarum valvae solenoid SUS304 DN20
    ⑨ Liquid planum switch SUS304
    ⑩ Electric imperium scrinium SUS304 Libitum

    INTERFACE CONJUGATIO
    Nec. Nomen INGENIUM Connection Part
    NH-1 Pituitae importans portum DN40 PVC interface
    NH-2 Filtrate missionis portum DN80 Filum interius (304)
    NH-3 Aquarum portum DN20 PVC interface
    NH-4 Liquidum eget portans DN20 PVC interface
    NH-5 Refluxus portum DN80 PVC interface
    NH-6 Mixtio tristique missio portum DN50 Pila valvae (PVC)

    ELECTIO PARAMETERS
    Processus facultatem 6-10(D5-kg/h)
    Electricity consummatio 0.2kw/h
    Aqua rutilant consummatio 24L/h
    Polymerus flocculant praeter rate Nam DST~ 0.3%
    Tutela procuratio frequentiae 5min/day
    Aquarum copia pressura 0.1~0.2MPa
    Lutum massae missionem procul a terra 280mm
    Mechanica magnitudine L2000*W700*H1060(mm)
    Net pondus 182kg
    Operans pondus 280kg

    LEGE PLUS

Interroga peritus
nihao industria ducens commoda
Interroga peritus

1

Ferro Cover Et PMMA Fenestra tutius fac

Immaculata chalybea Tege cum duabus ansulis super puero principalis, et confirma polymethyl methacrylatas vitreas fenestras in utraque magnitudine, Tegumentum fac ut instrumentum tutiorem et facientem navigantem cum currendo. Also operarius machinam diligenter in Fenestra currens pertractare potest.

Ensure Safety

2

Ferro Sprinker Ratio Get diutius vivere

Systema aspersorium gravissimum est ad systema exstinguendum, cum usus maxime facilis est ad systema demagrici, omnes systematis partium Juntai Screw Press aspersorium fiunt a SS304, inter fistulam, injectum et nozzel, numquam. opus est reponere spayer COLLUM.

Vita longior

3

Detailing Guaratee Quality

Nihao fucus in singulis speciebus Cochleae Press, ut superficies snoothy, funem protegat, filum stabile, radii et angulos snososos, lineam iunctam et omnes particulas, Juntai conantur facere quantum possumus, et hoc quoque est. ita ut qualitatem obtineat.

Focus Detailing

4

Cobalt Alloy gere Stratum fac Cochleas durius

Omnes Cochleae Nihao Dewatering apparatus cabalt Alloy Varum iacti sunt, quae multo duriores sunt quam SS304, et cum iacuit Aobalt Alloy waer, cochlea durior et canbe pluribus annis usus est.

Durius Screw

5

Schneider Electric Control Cabinet

Nihao machina dewatering cum archa potestate Germanica Schneider Electric inauguratur, haec princeps qualitas archa temperantiae salutem melius efficere potest.

Germania Schneider

6

Pressura aqua tormentarii Cum Fibreglass Hose Fac Tersus Facilius

Omnes Cochleae Nihao Dewatering apparatus cabalt Alloy Varum iacti sunt, quae multo duriores sunt quam SS304, et cum iacuit Aobalt Alloy waer, cochlea durior et canbe pluribus annis usus est.

Tersus Facilius

NIHAO Sludge Dewater Scew Press VI " Technology Commodum
Peto a Quote

Instructus prae-crassione piscina et meliori ad tractetum de humili intentione pituitae.

Melior gravitas densatur defectuum et intellexit altum Crassitudo efficiens.Flocculatio et crassitudo integrantur, dewater facilior fit. Coniunge cum regente finem laminam, coniunctio pituitae optimized potest.

Fixas movens annulos pannum repone sparguntur.

In rotatione scapi cochleae seiunctionem annulorum e fixorum anulorum Moventium impellit, qui sui purgationem processuscontinuously et automatice producit. Hoc dat stabilem et constantem deundationem fieri sine pressione alta pressionis rutilantis aquae ne LENTUS impediat. Hoc etiam efficit ut specimen oleum pituitae pinguis, quae facile impedit et difficile tractatur cum aliis generibus instrumentorum aquationis.

Humilis sonus, humilis tremulus, Vis salutaris, aqua salutaris.

Sicut principale elementum, cochlea tardissima ad 2-4rpm gyratur, non opus est magna integratione sicut scutulis, ita ut potentiae valde humilis et sic ambitus amicabilis consumatur. Vis consummatio cochleae torcularis est 1/20 centrifugii quod celeritate rotationis requirit, torcular cinguli 1/8, quod solum est 0.01-0.1 Kwh/kg-DS.Mechanismus singularis sui purgationis impedit reticulum ab arcendo, ne deinde nihil opus est ingentibus aquae viribus impediendis. Copia aquae purgandae requiritur circiter 1/115 preli cinguli et centrifugii 1/62.

Infrastructuram obsidionem reducere sumptus, effectus curatio emendare.

Cochleae torcular directe tractare pituitam ab aeratione piscinae et piscinae secundae sedimentationis, ut non opus sit pigritiae et pituitae repositionis piscinae. Circumstructio infrastructura valde salvari potest et problema phosphoris emissio bene vitanda est. Sic systema dephosphorization purgamentorum tractandi augeri potest. Salvum infrastructurae collocationis etiam in turpis, aere compressore, lavacro sentinae et aliis instrumentis corollarii affinis. Minus vestigium occupant, minus de aquatione plantae infrastructurae obsideri.

Automatic potestate plene, simplex operatio et administratio.

Torcular cochleae aliquas partes non habet sicut pannum colum vel colum pororum quae facile plusculum sunt. Operatio tuta et facilis est. Machina etiam autocineto instrumenti potestate automatice operari potest.

Amplis applicationibus.

Late adhiberi possunt in purgatione municipali, cibi, caedendi, generandi, imprimendi et tingendi, oleum chemicae industriae, chartae confectionis, corii, pharmaceuticae et aliorum industriae pituitae exstinguendae.

NIHAO stupra Press aqua Serviceable dolor

Get tuum Free Quote

Specialis designatio Screw Press late typos habet, capacitas opercula ab 0.5Kg-DS/h ad 1320- 1768Kg-DS/h.

Potest agere cum aqua vasta possidet Cruda vastitatem, Aqua Sludge Activated, Caementaria Praecipitata Sludge, DAf Sludge.

Proponere etiam possumus aptissimum propositum technicum in ipsa necessitate fundatum.

Interroga Peritus
nihao stupra Press Genera Electio Reference
Type DS Standard Processing Volume

Theoretical Reference For Sludge Treatment Volume

(specialis curatio volumen determinatur per effectum flocculationis pituitae et oeconomiae)

Humilis concentration → High concentration 2000mg/L 2000mg/L 2000mg/L 2000mg/L 2000mg/L 2000mg/L
Curatio pituitae Capactiy kg/h** kg/h m³/h m³/h m³/h m³/h m³/h m³/h
NH-131 ~6 ~10 ~3 ~1.2 ~1 ~0.5 ~0.4 ~0.2
NH-132 ~12 ~20 ~6 ~2.4 ~2 ~1 ~0.8 ~0.4
NH-201 ~9 ~15 ~4.5 ~1.8 ~1.5 ~0.75 ~0.6 ~0.3
NH-202 ~18 ~30 ~9 ~3.6 ~3 ~1.5 ~1.2 ~0.6
NH-251 ~20 ~35 ~4 ~2 ~1.5 ~1 ~0.8 ~0.4
NH-301 ~30 ~50 ~15 ~6 ~5 ~2.5 ~2 ~1
NH-302 ~60 ~100 ~30 ~12 ~10 ~5 ~4 ~2
NH-303 ~90 ~150 ~45 ~18 ~15 ~7.5 ~6 ~3
NH-351 ~60 ~100 ~30 ~12 ~10 ~5 ~4 ~2
NH-352 ~120 ~200 ~60 ~24 ~20 ~10 ~8 ~4
NH-401 ~90 ~150 ~45 ~18 ~15 ~7.5 ~6 ~3
NH-402 ~180 ~300 ~90 ~36 ~30 ~15 ~12 ~6
NH-403 ~270 ~450 ~135 ~54 ~45 ~22.5 ~18 ~9
NH-404 ~360 ~600 ~180 ~72 ~60 ~30 ~24 ~12
nihao Difusores Exemplar stupra Press Specification
Exemplar

Spiral Shaft

Specifications

Mechanica Size Net pondus Operans pondus

Longitudo

(Variable)

Latitudo

(Variable)

Altitudo

(Variable)
mm * PCs mm mm mm kg kg
NH-131 130*1 1960 800 1150 182 280
NH-132 132*2 2100 850 1150 360 400
NH-201 200*1 2500 800 1450 315 420
NH-201 200*2 2600 950 1450 515 680
NH-251 250*1 2600 850 1500 450 700
NH-301 300*1 3100 900 1800 568 1200
NH-302 300*2 3400 1200 1800 968 2030
NH-303 300*3 3700 14500 1800 1358 2750
NH-351 350*1 3400 950 1900 800 1100
NH-352 350*2 3700 1400 1900 1400 3300
NH-401 400*1 3800 1100 2100 1085 2400
NH-402 400*2 4100 1500 2050 2200 4200
NH-403 400*3 4370 1800 2150 3300 6300
NH-404 400*4 4800 2600 2050 4500 7200
nihao COCHLIA ​​Standard configurationis and Structure
Get Drawings

NIHAO COCHLIA ​​(Latin configurationis)

Fluere Imperium Tank Sludge in Fluvio Imperium Tank per pituitae sentinam pascitur, et cum fistula redundantia ordinatur, rediens excessus volumen ad pituitae piscinam repositam.

1

Flocculation lacus excita et pituitae cum polymerum miscere, formans idoneus "floc".

2

Dewatering cylindrici conditionata pituitae incrassatur crasso zona cylindri et pressura interioris aucta ad zonam dewatering pituitae benedewatered adiuvat.

3

Dimittite Outlet pro Sludge Rutrum Praeterea pressura applicatur exitus latus cum theEnd laminam functo pituitae placentam cum XX "+ 5% solidis contenti.

4

Structure

nihao Dosing System

AUTOMATARIUM POLYMER praeparatio unitatis

Specifications

Exemplar

capacitas

(L/h)

Pulvis

hopper

facultatem

(L)

 Materia

Potestas

(KW)

Dimensiones (mm)

Pondus

(kg)
L W H
NH-500L 50 65 SUS304 0.99 1400 1520 1520 280
NH-1000L 1000 65 SUS304 0.99 2000 1300 1300 410
NH-2000L 2000 65 SUS304 1.36 2400 1520 1520 550
NH-4000L 4000 6 SUS304 1.36 3000 1800 1800 680
NH-5000L 5000 65 SUS304 3.55 4000 1550 1550 960
NH-6000L 6000 65 SUS304 3.55 4000 1800 1800 1050
NH-8000L 8000 65 SUS304 4.65 4500 1800 1800 1280
NH-1000L 10000 100*2 SUS304 4.9 5000 1800 1800 1560

Praeparatio Automatic Polymerus Unit est ad praeparationem pulveris polymerorum. designatus homogeneitas in flocculantconcentratione.

Consilium ipsum efficere potest polymerus per maturationem processus minimi vestigii utens.

PE POLYMER praeparatio unitatis

PE Polymerus Praeparatio Unitas est asimple dosing unitae PE. Unitas constat ex motore excitato, mixer, dosing portu, aqua inletus et aqua lavatio.lt sumptus est humilis, qui exigui librae applicatur, proiectum personnelonsitum.

Specifications

Model

capacitas

(L/h)

 Dimensiones (mm)

Potestas

(kw)

Mixtio motricium

(kw)

Dosing sentinam

(kw)
L W H
NH-500L-PE-1 500 830 1410 1580 1 0.75 0.25
NH-500L-PE-2 1000 830 1410 1580 2 0.75*2 0.25*2
NH-500L-PE-3 1500 2490 1410 1580 3 0.75*3 0.25*3
NH-1000L-PE-1 1000 1120 1720 1706 1 0.75 0.25
NH-1000L-PE-2 2000 2240 1720 1706 2 0.75*2 0.25*2
NH-1000L-PE-3 3000 3360 1720 1706 3 0.75*3 0.25*3
NH-2000L-PE-1 2000 1400 2000 2200 1.65 1.1 0.55
NH-2000L-PE-2 4000 2800 2000 2200 3.3 1.1*2 0.55*2
NH-2000L-PE-3 6000 6200 2000 2200 4.95 1.1*3 0.55*3
nihao stupra Press Inventarium et Packaging
Interroga peritus

News Center

Adtendite ad latest news and exhibitions

View More

Contact Us

*We respect your confidentiality and all information are protected.

×
Password
Adepto password
Enter password to download relevant content.
Submit
submit
Mitte nobis, message
